Alef Implant
The Alef Implant by MSDI is a versatile internal hex connection system designed for high performance across all indications. Its innovative features ensure precise placement, stability, and optimal aesthetics, making it ideal for modern dental practices.
Enquiry nowDescription

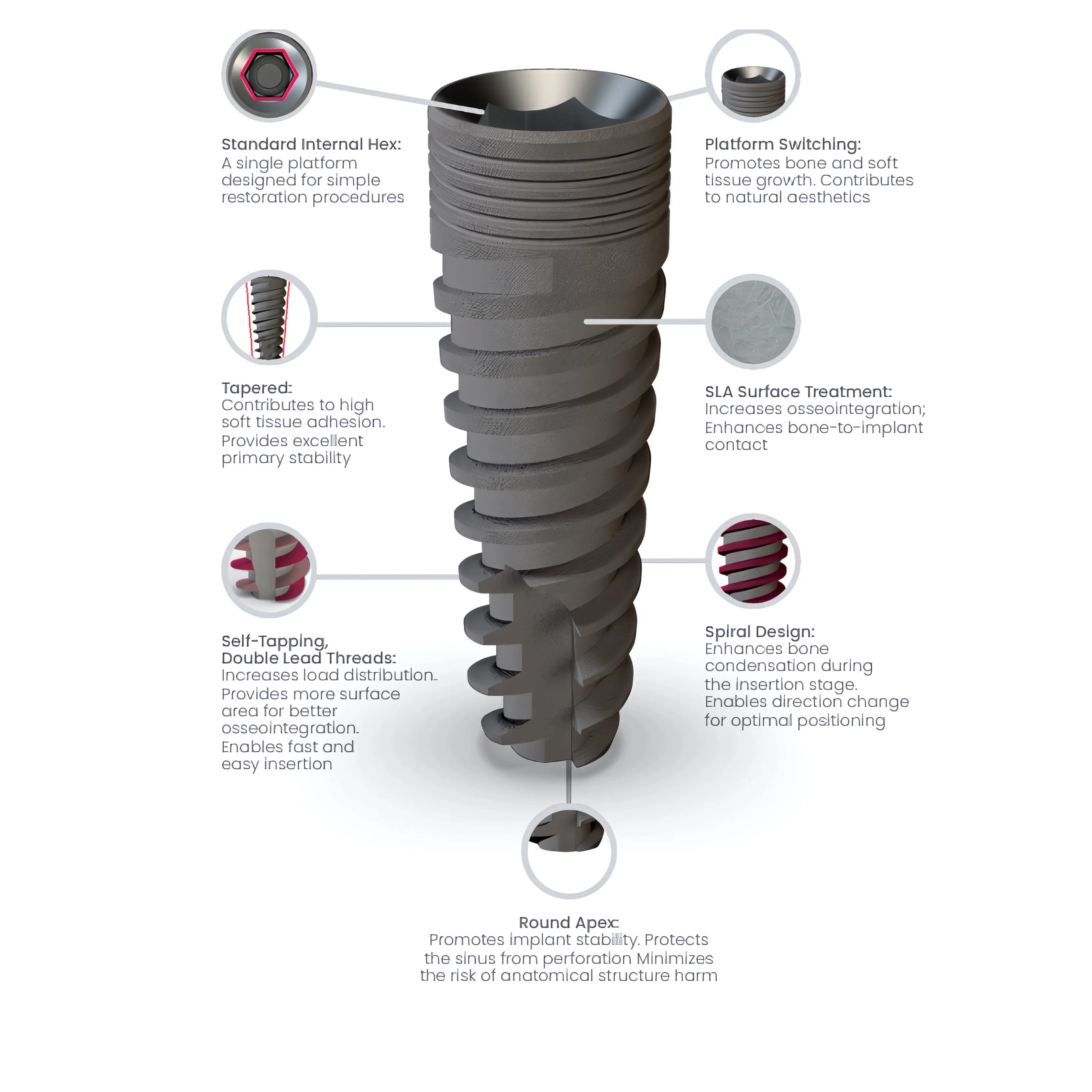

The Alef Implant is a high-performance solution engineered by MSDI to cater to both novice and experienced dental professionals. Its standard internal hex connection simplifies restoration procedures, while platform switching promotes bone and soft tissue growth, contributing to natural aesthetics. The spiral design enhances bone condensation during insertion and allows for direction adjustments for optimal positioning. The SLA surface treatment increases osseointegration and enhances bone-to-implant contact. The tapered body ensures high soft tissue adhesion and provides excellent primary stability. Self-tapping, double lead threads increase load distribution, offer more surface area for better osseointegration, and enable fast and easy insertion. The round apex promotes implant stability, protects the sinus from perforation, and minimizes the risk of harming anatomical structures. Available in various diameters and lengths, the Alef Implant is suitable for a wide range of bone types and augmentation procedures, making it a comprehensive solution for diverse clinical needs.
Specifications
| Specification | Details |
|---|---|
| connection type | Standard Internal Hex |
| platform switching | Yes |
| design features | 0: Spiral Design, 1: Tapered Body, 2: Self-Tapping, Double Lead Threads, 3: Round Apex |
| surface treatment | SLA (Sandblasted, Large grit, Acid-etched) |
| available diameters | 0: Ø3.5 mm, 1: Ø3.75 mm, 2: Ø4.2 mm, 3: Ø5.0 mm, 4: Ø6.0 mm |
| available lengths | 0: 6 mm, 1: 8 mm, 2: 10 mm, 3: 11.5 mm, 4: 13 mm, 5: 16 mm |
